[ Product ]

QUY750
fuwa Heavy
consulting service 400-811-0159

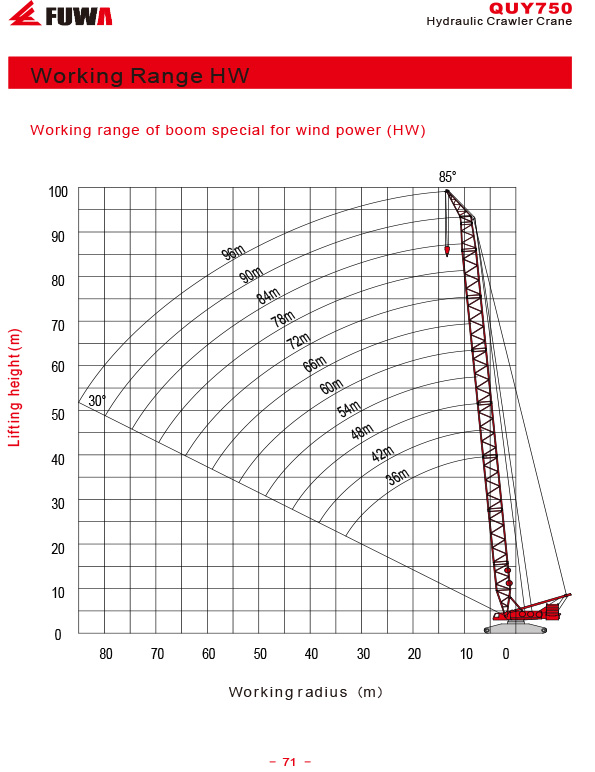

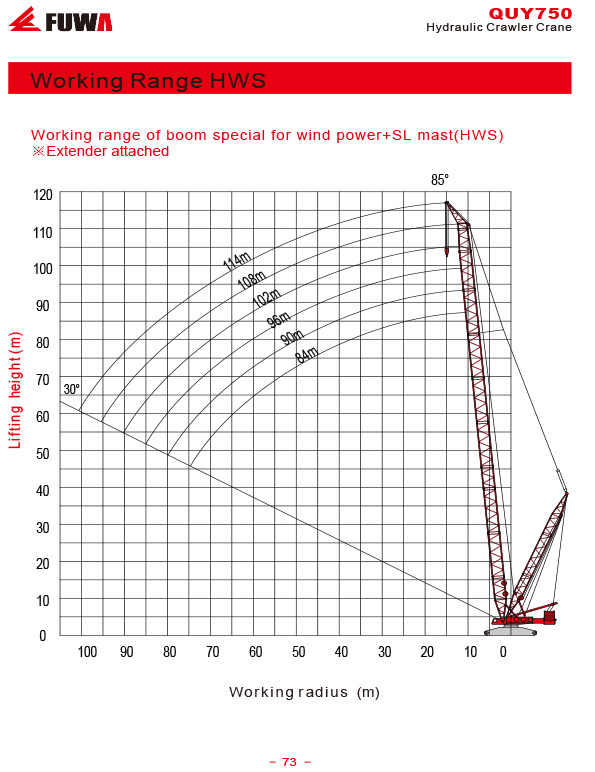

△It is equipped with 2.5-3.0mw wind turbine special hoisting conditions;

△All jib combinations can be pulled up automatically without auxiliary crane;

△The special working condition platform for wind power has an additional turntable to improve the hoisting performance of the whole machine without increasing the grounding voltage;

△It is more convenient to assemble and disassemble the arm head device without bracket pull plate under the special working condition of wind power;

△The vulnerable and consumable structural parts of the whole vehicle are self-made parts with unique structural design, convenient maintenance and low cost;
